2020 Ford F-150 Engine Options

A red 2020 Ford F-150 driving through mud and splattering it everywhere

What 2020 Ford F-150 for sale is right for you? It depends on what engine you are looking for. At Phil Long Ford Chapel Hills, we will look at each 2020 Ford F-150 engine option based on horsepower, torque, payload, towing capacity, fuel economy ratings and GVWR to determine which model suits you the best.

Shop Ford F-150 Trucks

2020 Ford F-150 Engine Options

You have six 2020 Ford F-150 engine options to choose from this year: 3.5L EcoBoost V6, 3.0L Powerstroke Turbo Diesel, 2.7L Turbocharged EcoBoost V6, 5.0L Ti-VCT V8, 3.3L Ti-VCT V6, High-Output 3.5L EcoBoost Twin-Turbocharged V6. Whether you want maximum towing power or superior fuel saving ability, there's a new Ford F-150 for you.

3.5L EcoBoost V6

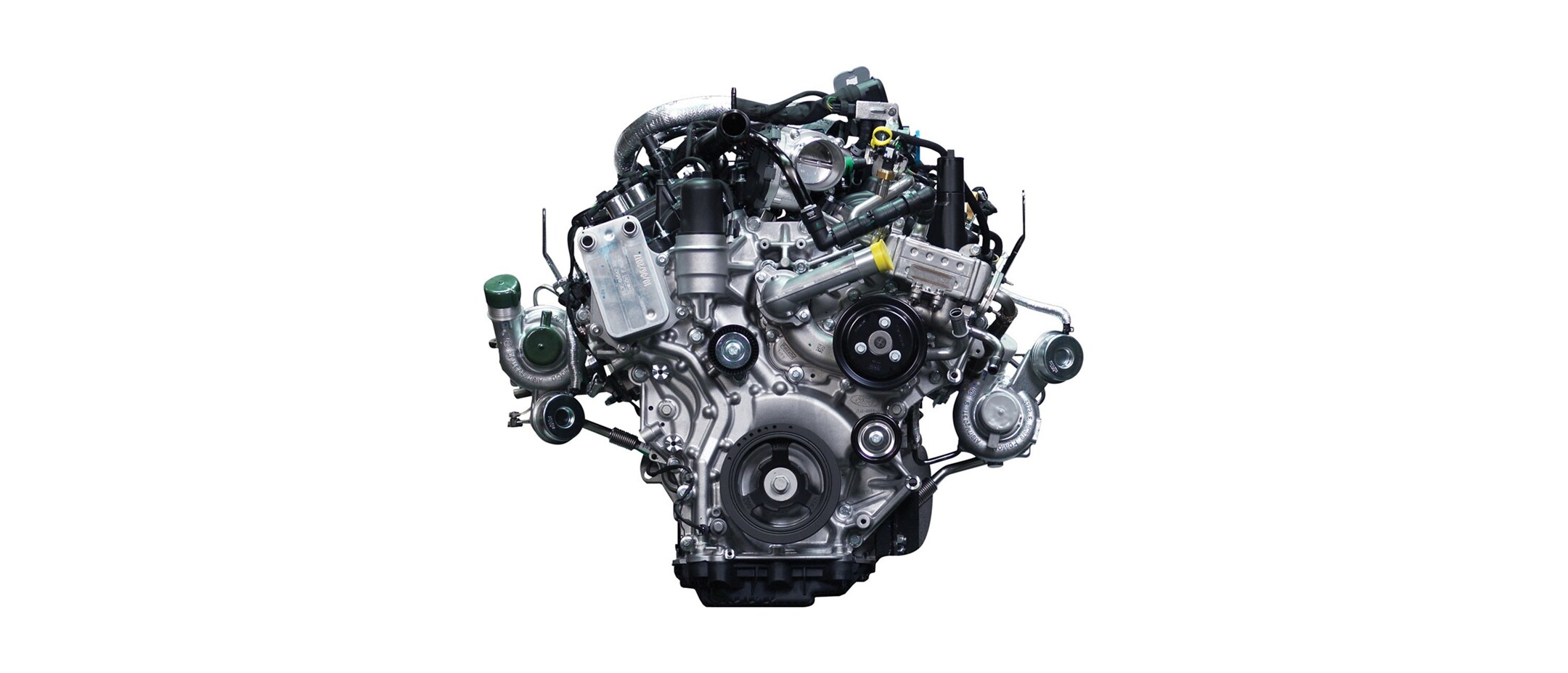

3.5L EcoBoost V6 F150 Engine

Towing Capacity | 13,200 pounds

Of all of the engines, you will find the most towing with the 3.5-liter EcoBoost V6. It can tow up to 13,200 pounds, but also hauls 3,230 pounds. It also outputs 375 horsepower plus 470 lb-ft. of torque. With all of this power, one might think that it doesn't get good fuel mileage, but that's not the case. The EcoBoost achieves 18 city/25 highway mpg.

3.0L Powerstroke V6 Turbo Diesel

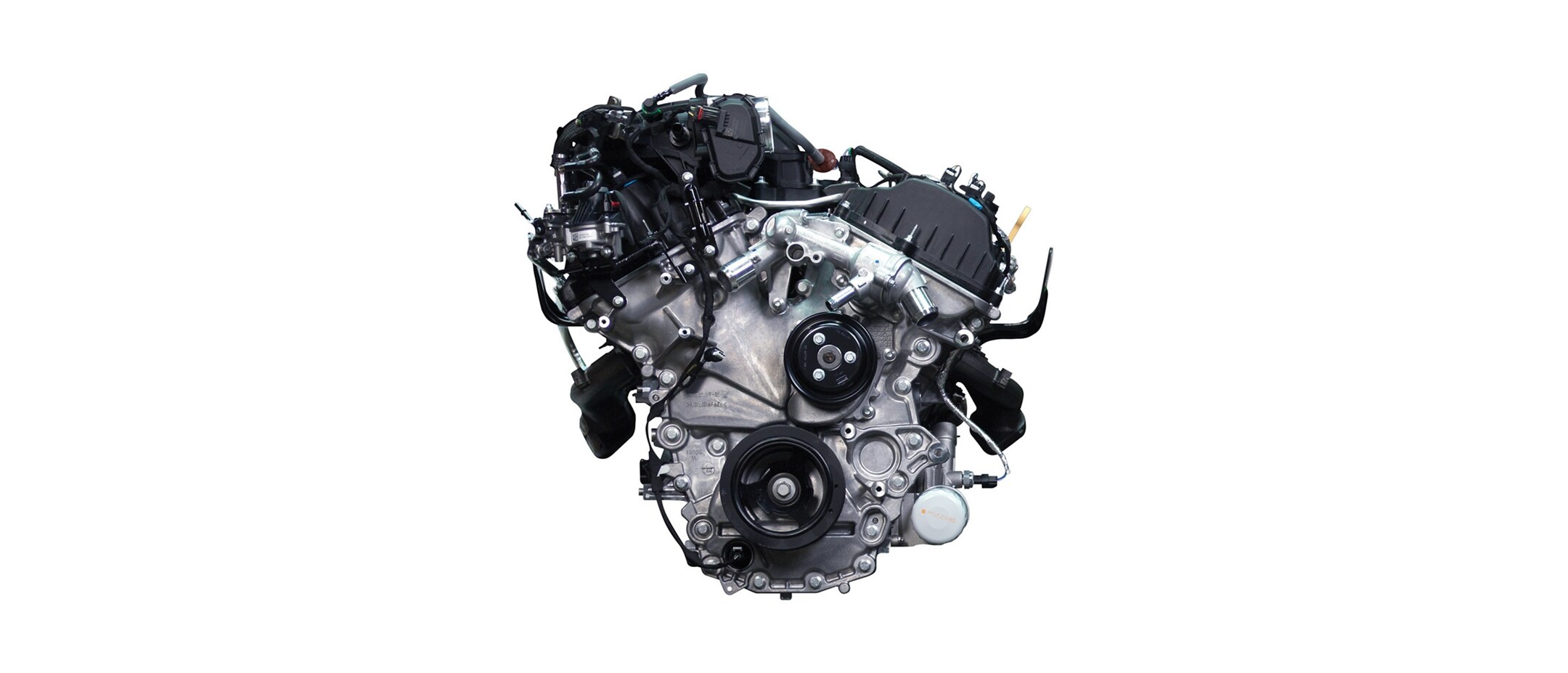

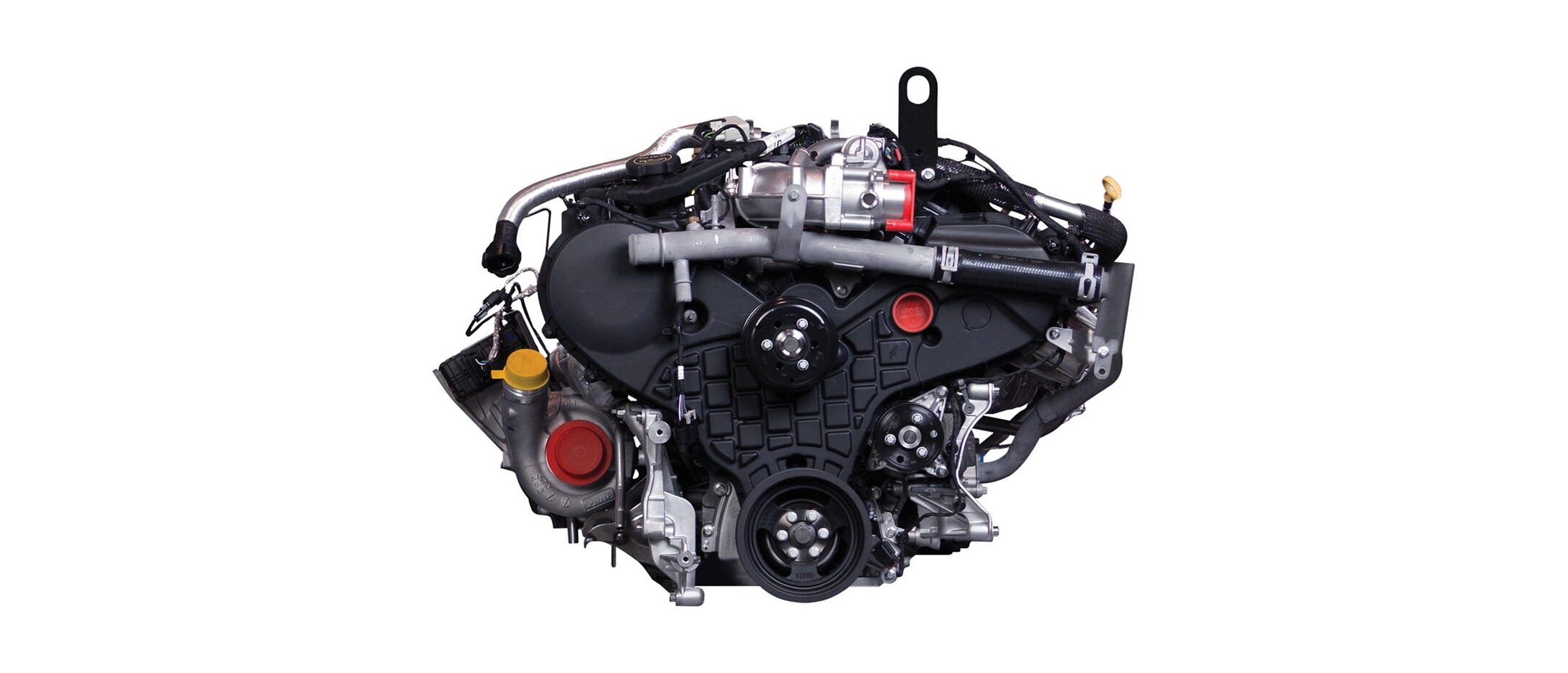

3.0L Powerstroke Turbo Diesel Ford F150 Engine

Towing Capacity | 11,500 pounds

For maximum diesel power, you simply can't go wrong with this Powerstroke motor. It pumps out 250 horsepower and 440 lb-ft. of torque to help you tow up to 11,500 pounds, plus features a hauling capacity of 2,020 pounds. The fuel economy is superior at 22 city/30 highway mpg.

2.7L Turbocharged EcoBoost V6

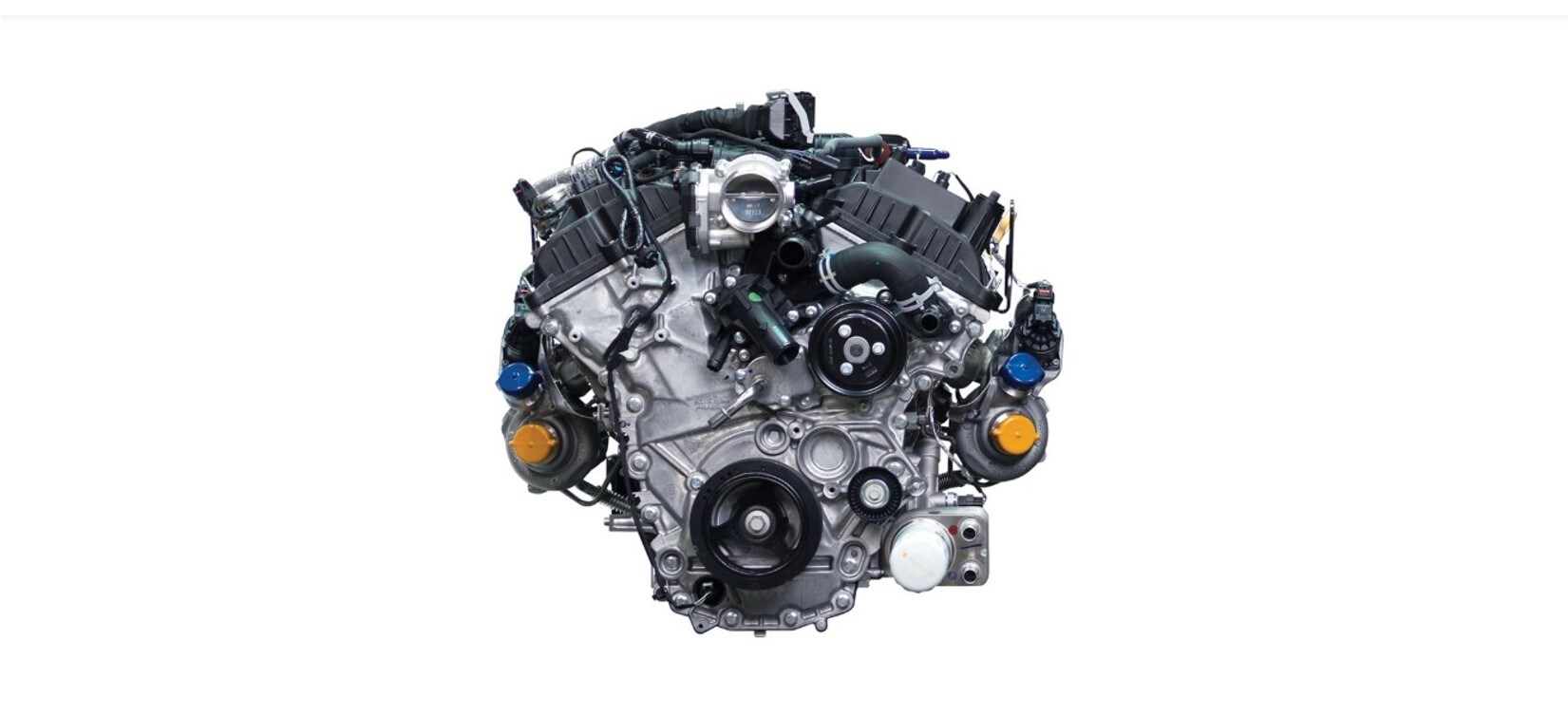

2.7L Turbocharged EcoBoost V6 Ford F150 Engine

Towing Capacity | 8,500 pounds

This EcoBoost is also fuel-conscious at 20 city/26 highway mpg, but it doesn't lack any performance. The output on this engine is rated at 325 horsepower and 400 lb-ft. of torque, which allows you to tow up to 8,500 pounds or haul 2,470 pounds of cargo.

5.0L TI-VCT V8

5.0L TI-VCT V8 Ford F150 Engine

Towing Capacity | 11,600 pounds

Typically V8 engines don't offer much fuel economy, but this motor is the exception. It achieves 17 city/23 highway mpg while outputting 395 horsepower and 400 lb-ft. of torque. With this Ford F-150 engine, you can tow 11,600 pounds, or haul up to 3,270 pounds.

3.3L TI-VCT V6

3.3L TI-VCT V6 Ford F150 Engine

Towing Capacity | 7,700 pounds

With this Ford F-150 engine, you will receive an output of 290 horsepower plus 265 lb-ft. of torque. This motor will tow up to 7,700 pounds and haul up to 1,990 pounds. On top of that, it achieves 19 city/25 highway mpg.

H.O. 3.5L EcoBoost Twin-Turbocharged V6

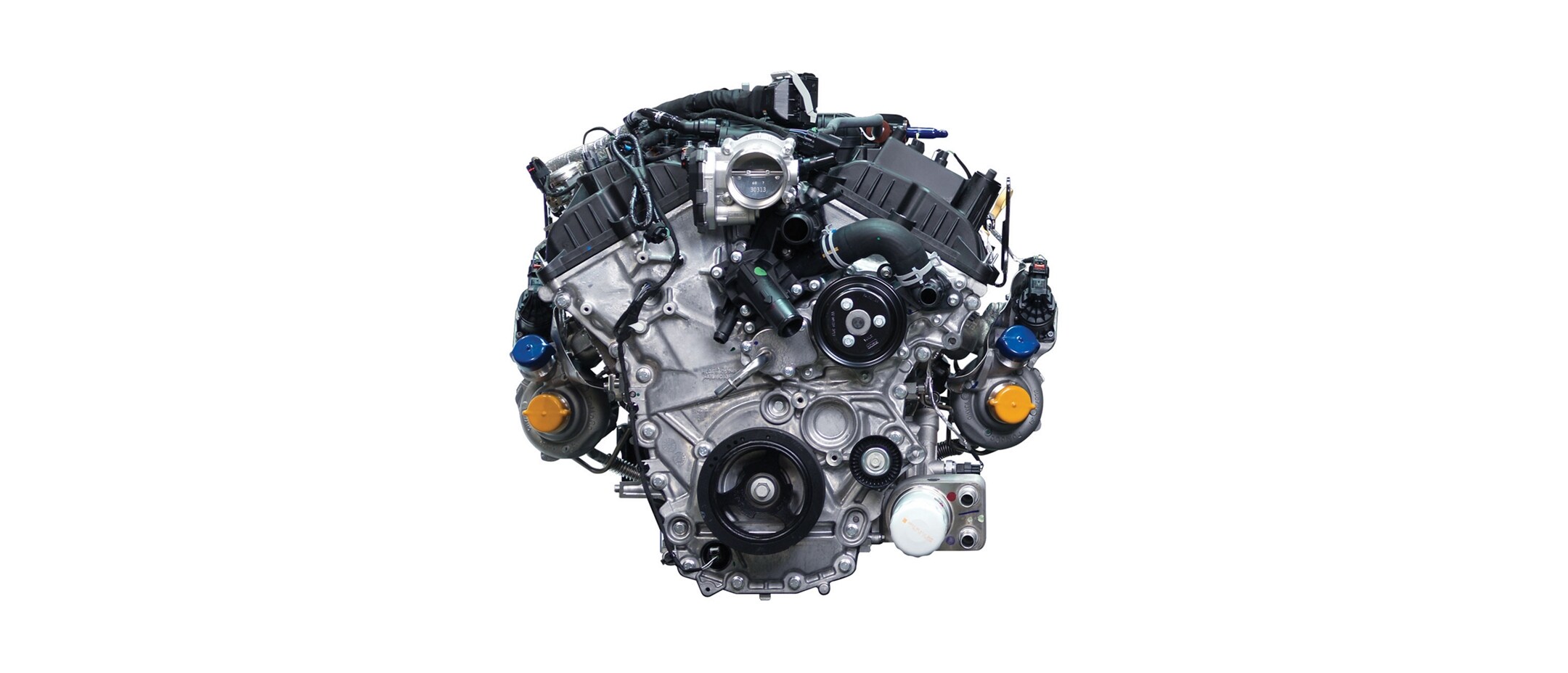

H.O. 3.5L EcoBoost Twin-Turbocharged V6 Ford F150 Engine

Towing Capacity | 11,100 pounds

This exceptional F-150 engine pumps out 450 horsepower plus 510 lb-ft. of torque that can tow 11,100 pounds (8,000 lbs. with the Raptor) or haul 1,520 pounds. It also has fuel economy numbers of 18 city/25 highway mpg.

A red 2020 Ford F150 towing a boat and a man stepping onto the f150

2018 vs. 2020: F-150 Engine Changes

Back in 2018, Ford added new F-150 engine options. Then, during the 2019 F-150 lineup, the Limited trim added the high-output EcoBoost engine, which is also found in the Raptor models. During the 2020 lineup, we see that all of the F-150 engine options now come paired to a ten-speed automatic for a smooth-shifting experience.

 Shop Ford F-150 Trucks

Which F-150 Engine is Right for You?

It doesn't take much effort to find the 2020 Ford F-150 engine that fits your lifestyle. If you want to tow or haul, the 3.5-liter EcoBoost V6 is your best option. On the other hand, you might prefer the 3.0-liter Powerstroke Turbo Diesel engine if you are worried about fuel economy. At Phil Long Ford Chapel Hills, we can help you find the best F-150 engine option at the lowest price. Talk to our team about the newest F-150 lease deals today.

Ask Us About the Ford F-150 Engine Lineup
